NZ Weekly Wednesday

#1 Post by Duncan White » Sat Nov 08, 2014 10:07 am





A320 landing at Queenstown (Speed x 3)

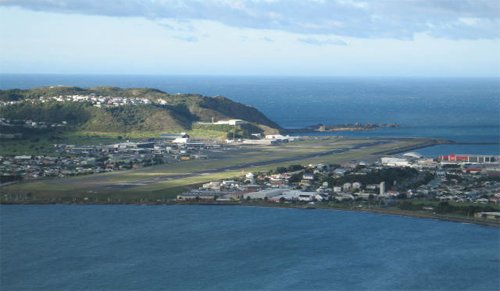

Windy Wellington!

NOTE TO PILOTS LANDING AT QUEENSTOWN
  • eg If assigned the RNAV (GNSS) G and you want to do the RNAV (RNP) Y just advise the controller.
  • Be familiar with your escape route ie missed approach procedure.
  • Make sure you fully understand the approach ie waypoints, heights, speeds, visual circuits if applicable, holding pattern.
  • Do not fly a plane larger than an A320.
  • Practice the approach when nobody is about.
NOTE TO PILOTS - DEPARTURES
  • If you don't have the SID on your FMC please tell the controller.
  • If you are not RNAV capable please advise the controller.
  • The controller will assign you a suitable departure. :)
Also, don't forget to set your sim for DAY TIME as there are no night operations into Queenstown.

Mission

Fly between Wellington (NZWN) and Queenstown (NZQN) airports in either direction.

These airports can both be very challenging to land at. Wellington for its wind & short runway. (1815m)
Queenstown for its approach over the Southern Alps and even shorter runway. (1777m)

When

Weekly on Wednesday's
  • NZDT 7pm - 10pm
  • UTC 0600 - 0900
Goals
  • To generate traffic for VATNZ.
  • To give S2 controllers experience on a procedural tower, after they have completed the procedural approach moodle course.
  • To give pilots of any level the opportunity to fly between two of New Zealand's most challenging airports.
ATC Positions
  • NZWN_TWR
  • NZWN_APR
  • NZQN_TWR
  • NZCH-K_CTR
  • NZCH-S_CTR
Bookings
Aircraft
  • A320
  • B737
  • ATR72
  • Dash8
  • anything of similar or smaller size then above


When clicking on an AIP link for the first time, you may come to the AIP NZ web page which requires you to click on "I agree".
After doing this it is best to use the back arrow on your browser until you are back here again. Then click on the link again and
you will go straight to the PDF. This is outside of our control.



Airport Ground Layouts
Wellington (NZWN) to Queenstown (NZQN)

Warning! Slope Hill VOR (SH) is now called Queenstown VOR (QN)

Route

WNQN 2 - SABDA Y622 MESIX H159 CH Y266 QN

Expect STAR

RWY 05 - ELRUV1A - Page 1 - http://www.aip.net.nz/pdf/NZQN_33.1_33.2.pdf

RWY 23 - ELRUV2B - Page 2 - http://www.aip.net.nz/pdf/NZQN_33.3_33.4.pdf

Possible holding at EKVOX left 180 degree turns, headings 037 & 217, 230kt

RWY 05 FL160 +
RWY 23 10,000 +

Then VOR/DME or RNAV approaches

1. VOR/DME B & C CIRCLING FOR [RUNWAY]

http://www.aip.net.nz/pdf/NZQN_43.1_43.2.pdf

2. RNAV (GNSS) F or G CIRCLING FOR [RUNWAY]

http://www.aip.net.nz/pdf/NZQN_45.3_45.4.pdf

or

3. RNAV (RNP) Y

RWY 05 - Page 1 - http://www.aip.net.nz/pdf/NZQN_45.1_45.2.pdf

RWY 23 - Page 2 - http://www.aip.net.nz/pdf/NZQN_45.1_45.2.pdf

Waypoint co-ordinates and heights as follows:-

Code: Select all

RNAV (RNP) Y RWY 05

Fix   Degrees Minutes Seconds        Decimal Degrees    Height
IBABU S044.59.34.000 E168.23.44.000 -44992811 168395425 12000 to 10000
QN577 S045.01.15.899 E168.18.53.280 -45021083 168314800 10000
QN573 S045.07.35.771 E168.15.31.432 -45126603 168258731 9200
QN571 S045.09.39.910 E168.18.34.970 -45161086 168309714 8200
QN569 S045.09.27.461 E168.22.48.320 -45157628 168380089 7100
ON565 S045.03.56.599 E168.37.30.652 -45139047 168429822 6300
QN562 S045.07.15.881 E168.28.40.181 -45121078 168477828 5500
OMUBO S045.03.56.599 E168.37.30.652 -45065722 168625181 3100
QN555 S045.02.60.000 E168.40.00.800 -45050000 168666889 2440
QN550 S045.02.15.151 E168.41.12.300 -45037542 168686750 2040
QN545 S045.01.21.990 E168.43.04.670 -45022775 168717964 1480

RNAV (RNP) Y RWY 23

Fix   Degrees Minutes Seconds        Decimal Degrees    Height
ATKIL S044.49.50.000 E169.14.37.000 -44830661 169243636 10000
QN780 S044.50.42.950 E169.09.21.661 -44845264 169156017 8600
QN775 S044.52.50.390 E169.05.05.219 -44880664 169084783 8600
QN770 S044.56.08.300 E169.03.52.088 -44935639 169064469 7500
ATVUP S044.58.46.682 E169.04.07.061 -44979634 169068628 6700
QN760 S045.02.08.779 E169.00.17.939 -45035772 169004983 5100
QN755 S045.01.37.549 E168.56.43.912 -45027097 168945531 4200
LARAV S045.00.17.539 E168.53.42.101 -45004872 168895028 3300
QN745 S044.59.58.322 E168.51.11.480 -44999534 168853189 2700
QN741 S045.00.14.260 E168.49.20.381 -45003961 168822328 2230
QN735 S045.00.30.521 E168.47.52.181 -45008478 168797828 1850


Queenstown (NZQN) to Wellington (NZWN)

Route

QNWN 2 - QN Q787 TIMJO Y153 DOPKI Y533 GRETA Y393 WN (JET)
QNWN 4 - QN Q787 TIMJO Y153 CH Y393 WN (NON JET)

Expect STAR

RWY 16 - WARDS1B - Page 1 http://www.aip.net.nz/pdf/NZWN_33.1_33.2.pdf

RWY 34 - WARDS1A - Page 1 http://www.aip.net.nz/pdf/NZWN_33.4_33.5.pdf

Scenery

Free Airport Scenery Queenstown (NZQN)

FS9 - to be advised
FSX - default is fine
X-Plane - http://forums.x-plane.org/index.php?app ... file=17924
Prep3D - to be advised

Free Airport Scenery Wellington (NZWN)

FS9 - to be advised
FSX - default is fine
X-Plane - http://forums.x-plane.org/index.php?app ... file=16425
Prep3D - to be advised

xFMC for X-Plane 10

How to make it work for Queenstown :-

http://www.vatnz.net/forum/viewtopic.ph ... 820#p17820
Last edited by Duncan White on Sat Jan 10, 2015 8:07 pm, edited 14 times in total.

Mark Richards
VATNZ Founder
Posts: 2710
Joined: Wed Nov 29, 2006 4:47 pm
VATSIM ID: 811451
Location: Auckand, New Zealand
Contact:

Re: NZ Weekly Wednesday

#2 Post by Mark Richards » Sun Nov 16, 2014 2:24 pm

A great initiative Duncan and lots of really valuable information in the post. Not sure how often I will be able to join in given my crazy work hours but fingers crossed I will be there one day!
Mark Richards (811451)
Vice President Operations (VATGOV2)
Auckland, New Zealand

Duncan White
Posts: 851
Joined: Fri Nov 22, 2013 7:43 pm
VATSIM ID: 1267983
Location: Hamilton

Re: NZ Weekly Wednesday

#3 Post by Duncan White » Thu Dec 11, 2014 7:41 am

Added "note to pilots landing at Queenstown".

Duncan White
Posts: 851
Joined: Fri Nov 22, 2013 7:43 pm
VATSIM ID: 1267983
Location: Hamilton

Re: NZ Weekly Wednesday

#4 Post by Duncan White » Thu Jan 01, 2015 12:44 pm

Amend arrival STARs for NZWN ie WARDS1A & 1B.

Added RNAV (GNSS) F & G.

Mark Richards
VATNZ Founder
Posts: 2710
Joined: Wed Nov 29, 2006 4:47 pm
VATSIM ID: 811451
Location: Auckand, New Zealand
Contact:

Re: NZ Weekly Wednesday

#5 Post by Mark Richards » Sun Jan 11, 2015 9:17 pm

Also, don't forget to set your sim for DAY TIME as there are no night operations into Queenstown.
Mark Richards (811451)
Vice President Operations (VATGOV2)
Auckland, New Zealand

Nick Botica
Posts: 170
Joined: Tue Jul 24, 2007 5:09 pm
VATSIM ID: 999991
Location: NZWN

Re: NZ Weekly Wednesday

#6 Post by Nick Botica » Mon Jan 12, 2015 9:26 pm

Mark Richards wrote:Also, don't forget to set your sim for DAY TIME as there are no night operations into Queenstown.
I managed to just get my airbus in at 9:55. Airport closes at 10pm from what I can tell.

Duncan White
Posts: 851
Joined: Fri Nov 22, 2013 7:43 pm
VATSIM ID: 1267983
Location: Hamilton

Re: NZ Weekly Wednesday

#7 Post by Duncan White » Tue Jan 13, 2015 5:33 pm

Hi Duncan,

You are correct, currently aircraft can only operate from Queenstown Airport during
daylight hours.

This time of the year daylight runs from approx. 5:40am to 10:10pm but in winter this
reduces to approx. 7:50am to 5:45pm.

Cheers, Chris

Chris Johnson
Operations Officer | Queenstown Airport Corporation

Nick Botica
Posts: 170
Joined: Tue Jul 24, 2007 5:09 pm
VATSIM ID: 999991
Location: NZWN

Re: NZ Weekly Wednesday

#8 Post by Nick Botica » Wed Jan 14, 2015 6:32 pm

Duncan White wrote:Hi Duncan,

You are correct, currently aircraft can only operate from Queenstown Airport during
daylight hours.

Dick Tucker
Posts: 77
Joined: Thu Nov 20, 2014 7:04 am
VATSIM ID: 1296118
Location: Auckland

Re: NZ Weekly Wednesday

#9 Post by Dick Tucker » Wed Jan 14, 2015 8:38 pm

:D Another great flight tonight, thank you all for being there.....and I set my sim to the middle of the day too so that I wouldn't fall foul of the CAA :roll: , I should have read this post earlier :oops:
While I'm at it, congratulations to Damien and Duncan on your new appointments, a fine choice I'm thinking :D
cheers,
Dick

Pilatus PC-12 ZK-MRT
Pilatus PC-24 ZK-VSA
Boeing 787-8 NZ946

Nick Botica
Posts: 170
Joined: Tue Jul 24, 2007 5:09 pm
VATSIM ID: 999991
Location: NZWN

Re: NZ Weekly Wednesday

#10 Post by Nick Botica » Wed Jan 14, 2015 9:37 pm

Thanks all again, dinner was a bit late so thanks for waiting for me NZWN_TWR :)

My airbus wasn't playing ball and I couldn't get the autothrottle to work so I busted through the 210kt limit and 10,000 foot restriction unfortunately. And it's not like you can manually adjust the power levels manually much. Oh well I'll have to do some more testing.

See you on Sunday hopefully.
